VPJet40-Premium

More reliable, more durable, and more precise printing with faster speeds.

The Epson i3200 printhead is one of Epson's best-selling printheads, known for its high-precision output, long lifespan, and support for UV inks across eight channels. It is an industrial-grade printhead perfectly suited for the DXonJet UV printer.

Watch The Video
DXonJet VPJet4 with Epson i3200 U1 HD Print Head

Print The Impossible

The DXonJet VPJet4.0-Premium vertical wall printer is engineered for high speed, high precision, and reliable printing, boasting a maximum printing height of up to 15 feet.

Utilizing advanced LED-UV curing technology, this versatile machine can print directly onto virtually any flat material, delivering high-quality outputs across a wide range of applications, including textured surfaces, as well as enabling off-wall printing via the VertiPrint easel and specialized floor printing capabilities.

Watch 2.5D Printing Effect

Key Highlights

  • Robust design and functional software ensure a stable printing process with no shaking, resulting in flawless prints.

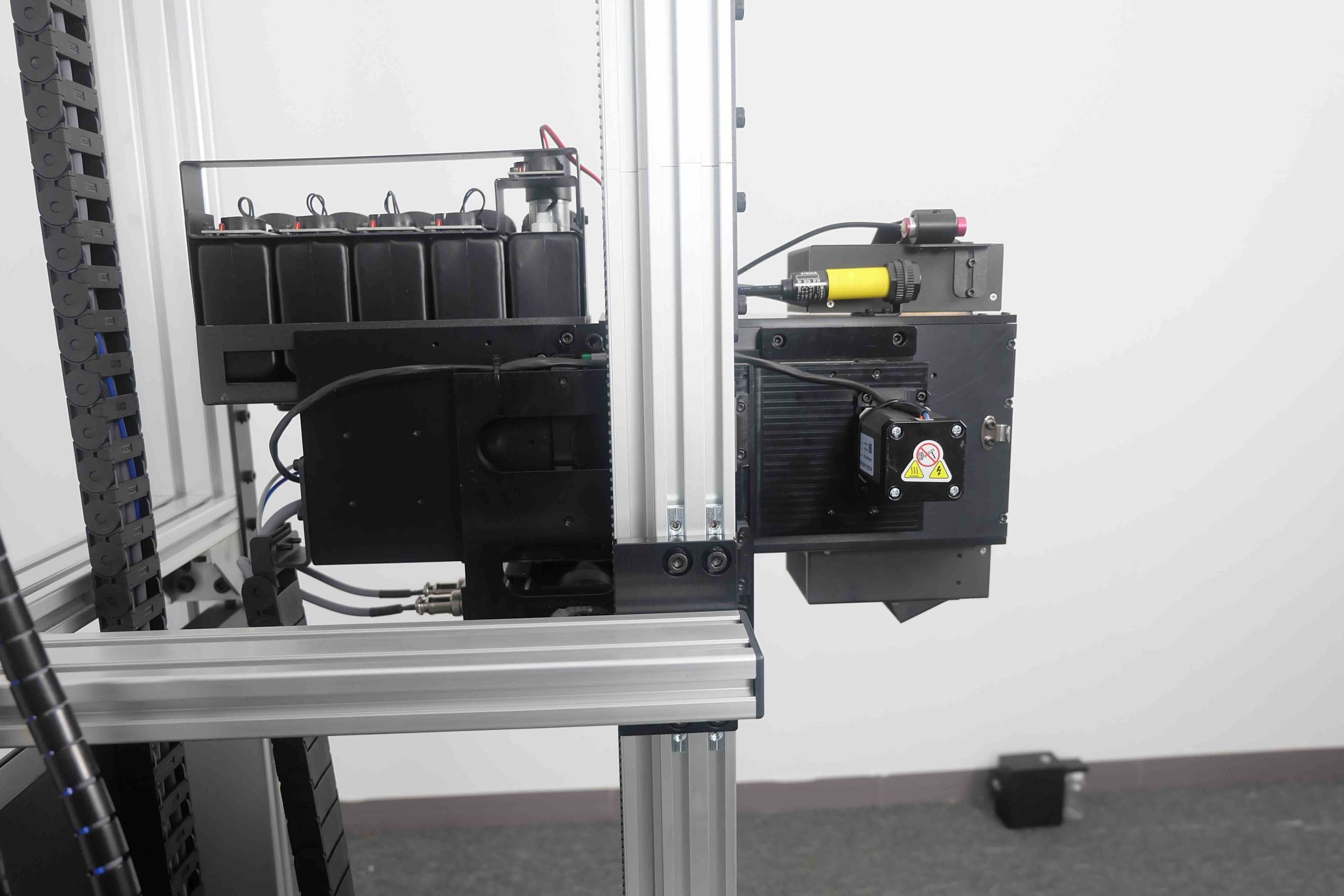

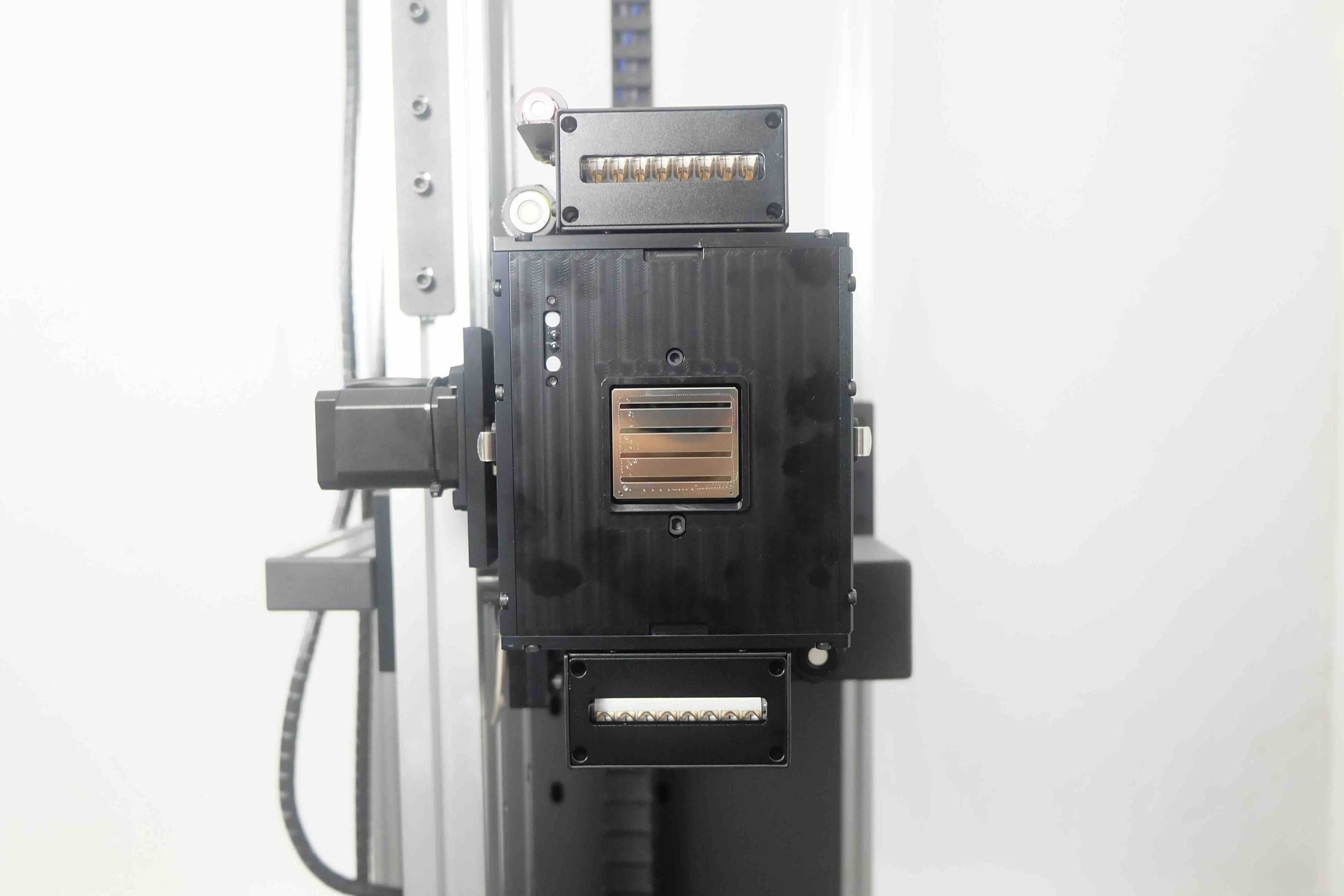

  • Industrial Epson i3200 U1-HD printhead with 3200 nozzles and 8 channels: 4 for CMYK, 2 for white, and 2 spares.
  • Capable of producing 2.5D textures.
  • High-speed performance: up to 3 square meters per hour (30 square feet) at 8-pass, 1200 dpi, balancing speed and quality.
  • Maximum print height of 15 feet, with a stable and safe printing process.

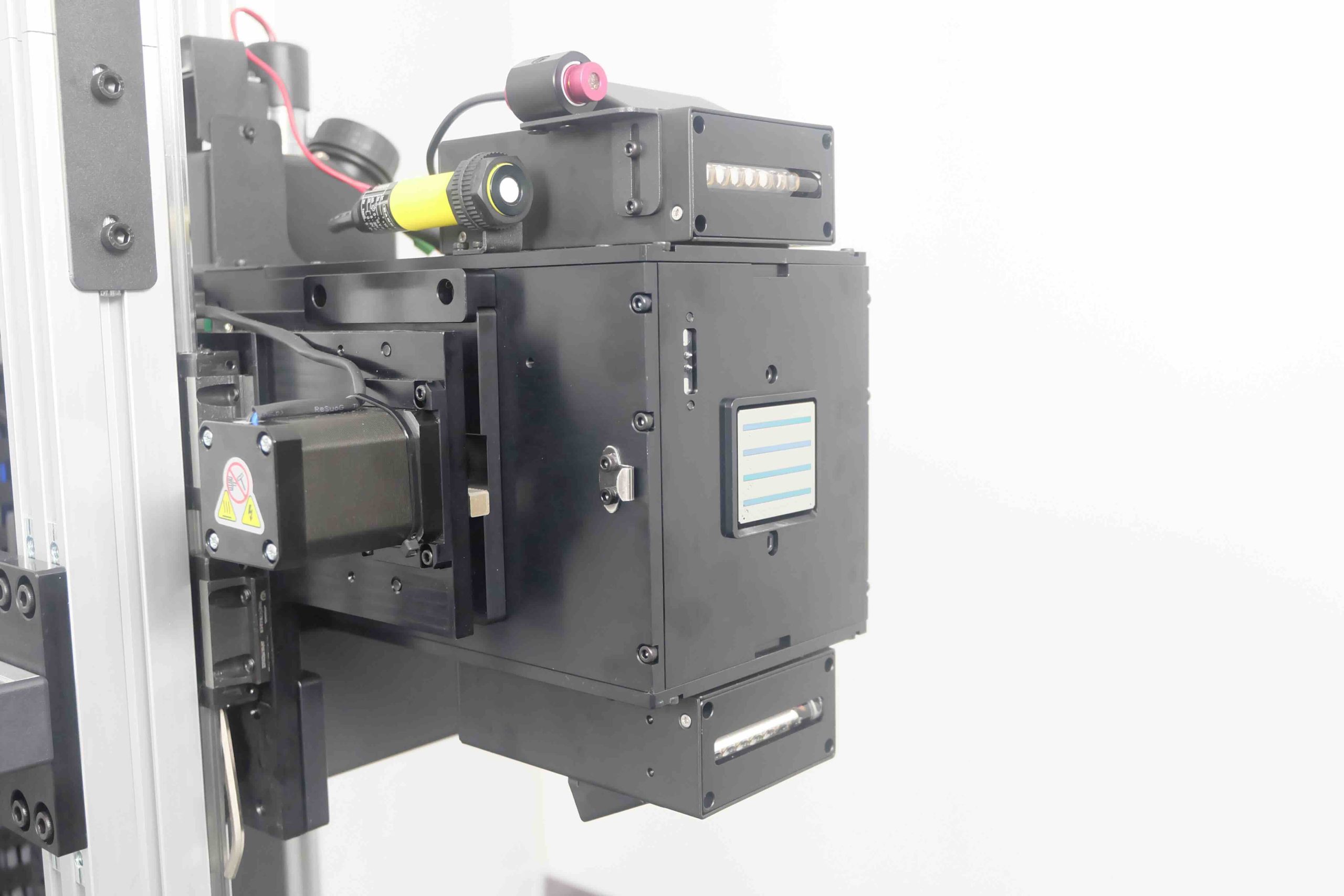

  • Prints on virtually any surface: dual LED-UV lamps instantly cure all ink droplets on almost any material.
  • Complete software suite included: no annual licenses or subscription fees; genuine version. • One-year factory warranty and lifelong technical support from the leading experts in wall printers.
  • Uses Greenguard Gold certified inks
  • Super simple maintenance: with the DXonJet maintenance kit, operators can maintain the printer via software or fully automatically.
  • Safety settings ensure the print head does not exceed the rod, protecting internal electronics.
  • Extensions for off-wall and floor printing.
  • Evolved from the version released 3 years ago, DXonJet continues to improve and iterate on this model, making it the most reliable vertical printer.

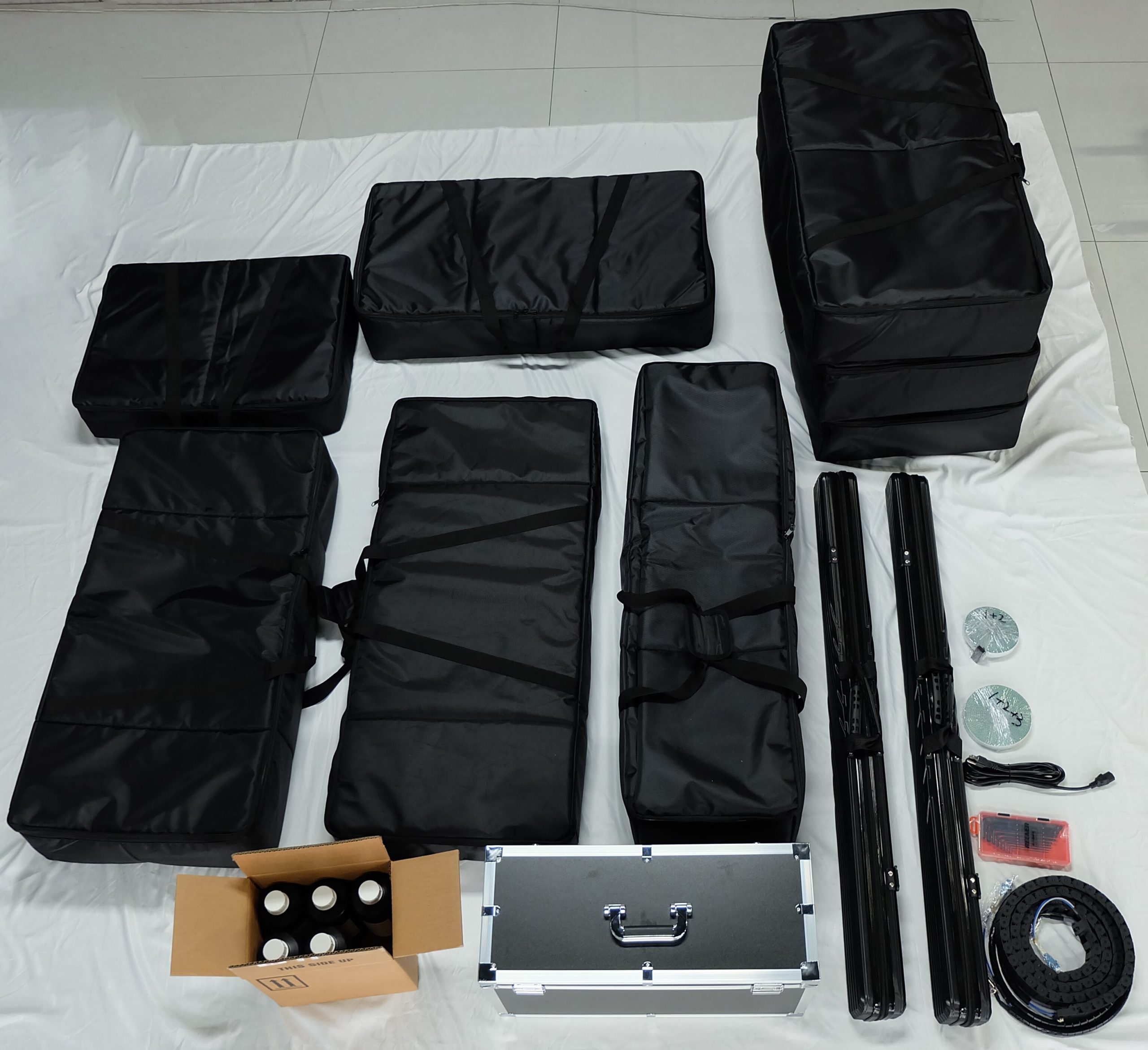

  • Transports easily in 11 bags and one robust flight case for the printhead unit.

Technical Specifications & Features

  • Max Print Resolution: 720 x 2440 dpi

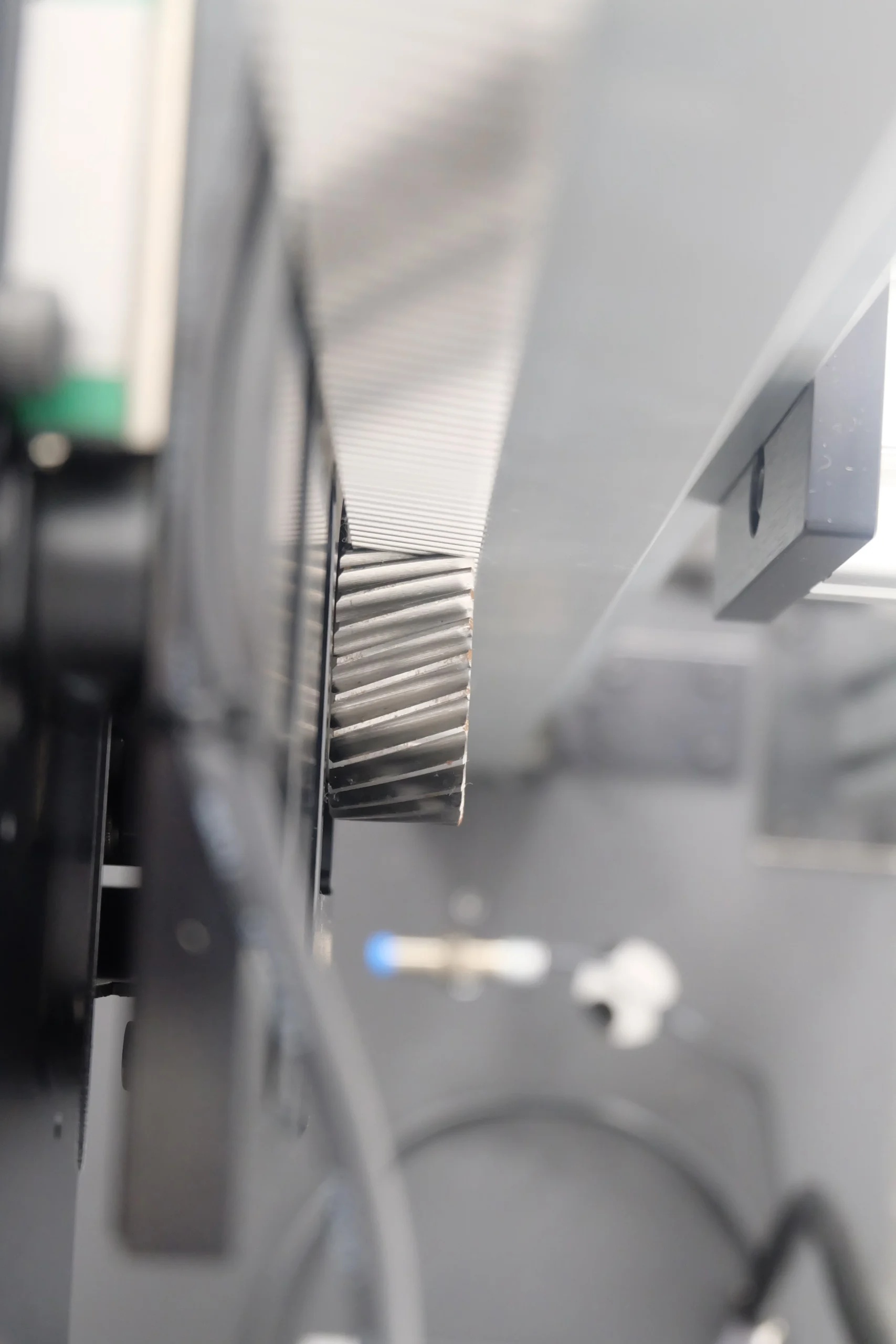

  • Vertical Driving System: Helical Rack and Pinion System
  • 2.5D Printing : Available
  • Print Height Range: Variable vertical height from 1.2m to 4.6m
  • Print Speed: Up to 5 square meters per hour (3 square meters per hour on average)
  • Printhead Technology: Highest industrial quality "EPSON" print heads
  • Ink System: Brilliant, long-lasting UV inks immediately cured by LED UV technology
  • Wall Compensation: Continuous distance control automatically compensates for wall irregularities up to 10 cm via ultrasonic sensors.
  • Surface Adaptability: Use wheels on flat surfaces and gear tracks on uneven ones for precise, stable, and height-adjustable operation.
  • White Printing: Available for printing clear, vibrant images on any colored background.

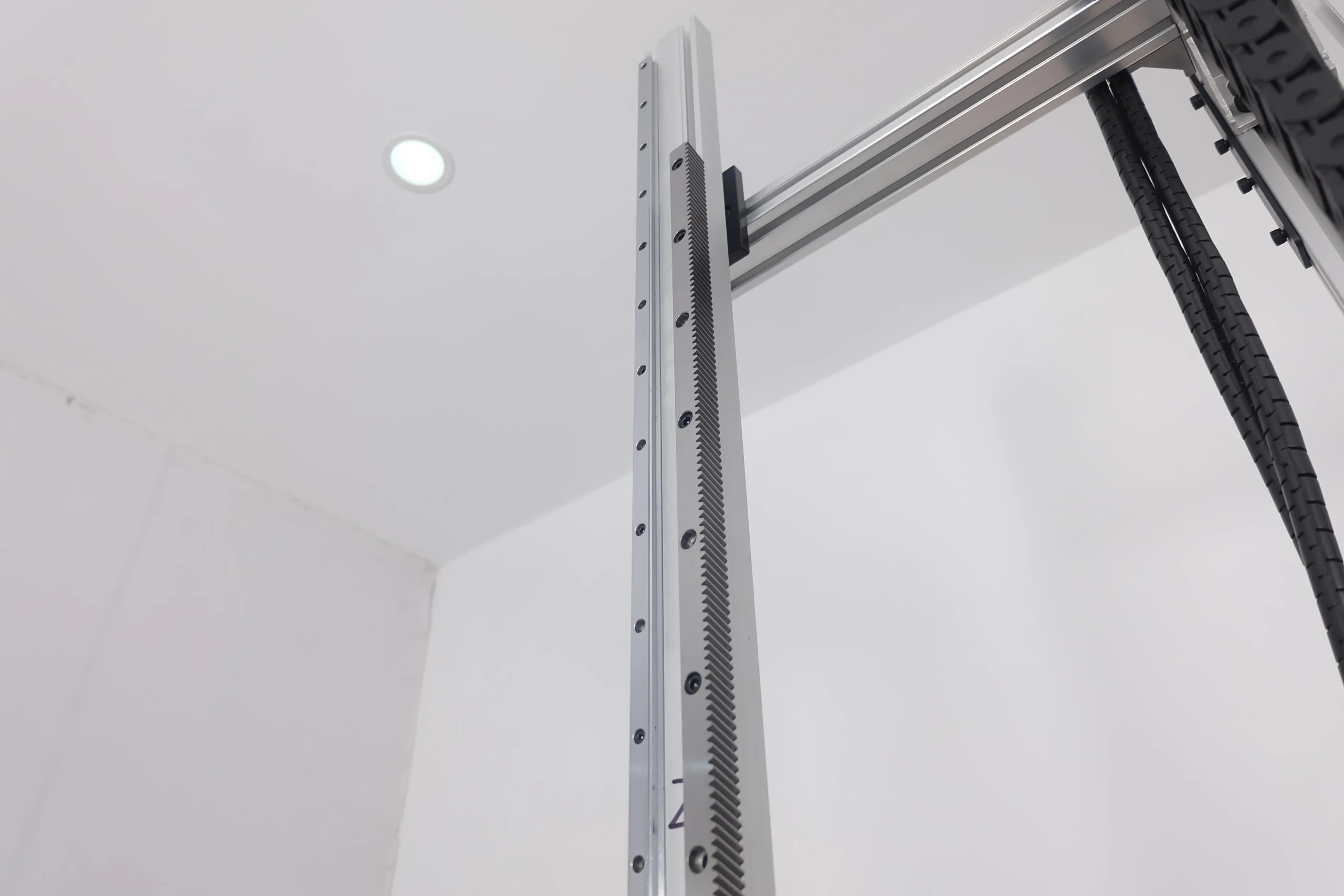

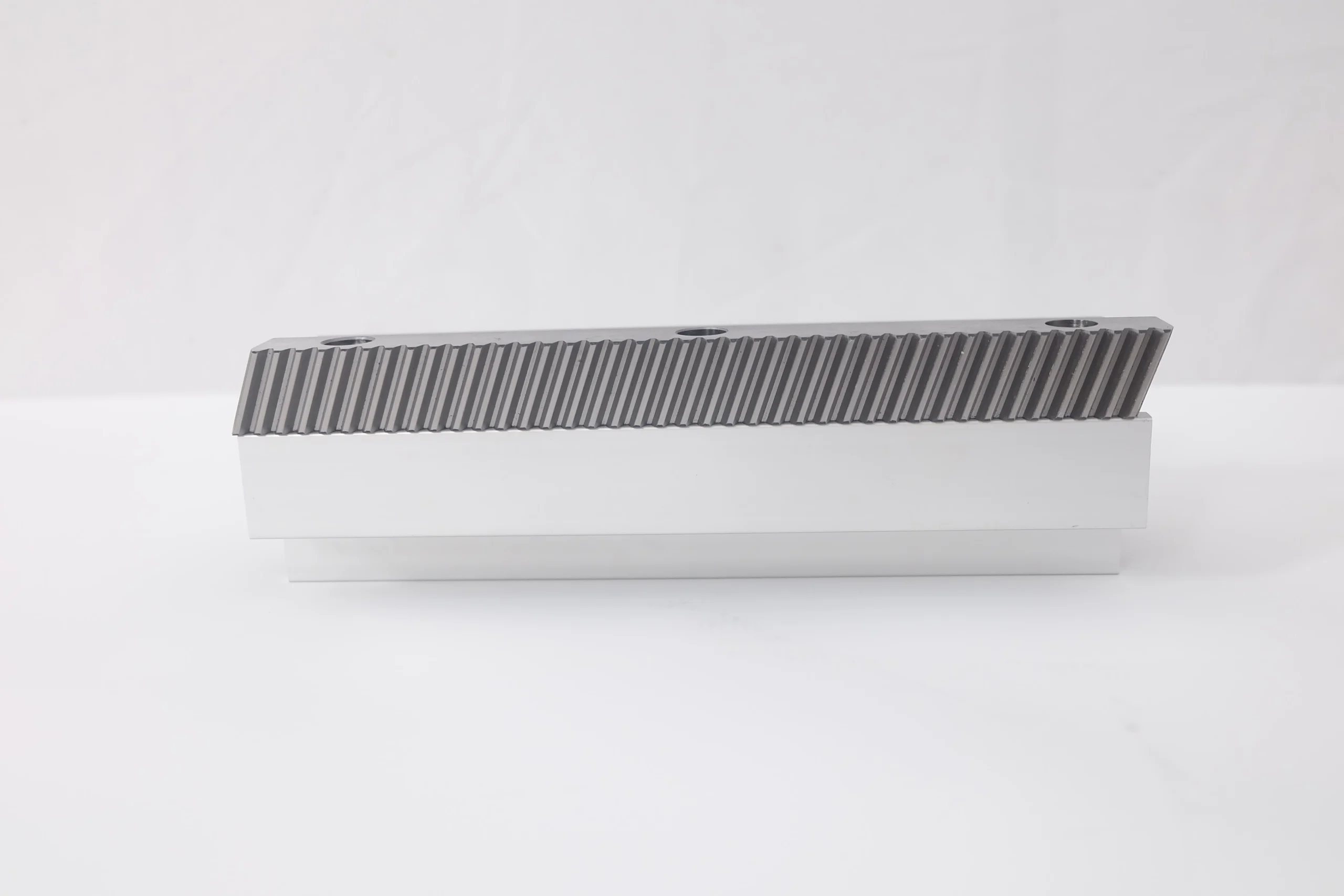

  • Linear Drive: The helical rack system provides smoother, quieter, and more efficient linear motion for high loads and long distances.
  • Operating System: DXonJet OS 2.0 offers optimized stability, efficiency, and self-protection, significantly enhancing print completion rates.
  • Maintenance: The Auto Maintainer provides fully automatic ink system maintenance, letting you enjoy your time worry-free.
  • Components: High-quality, industrial-grade components from leading global manufacturers.
  • Software: RIP software (Raster Image Processor) with full ICC support for accurate color profiles.
