Understanding Vertical Wall Printer Driving Systems

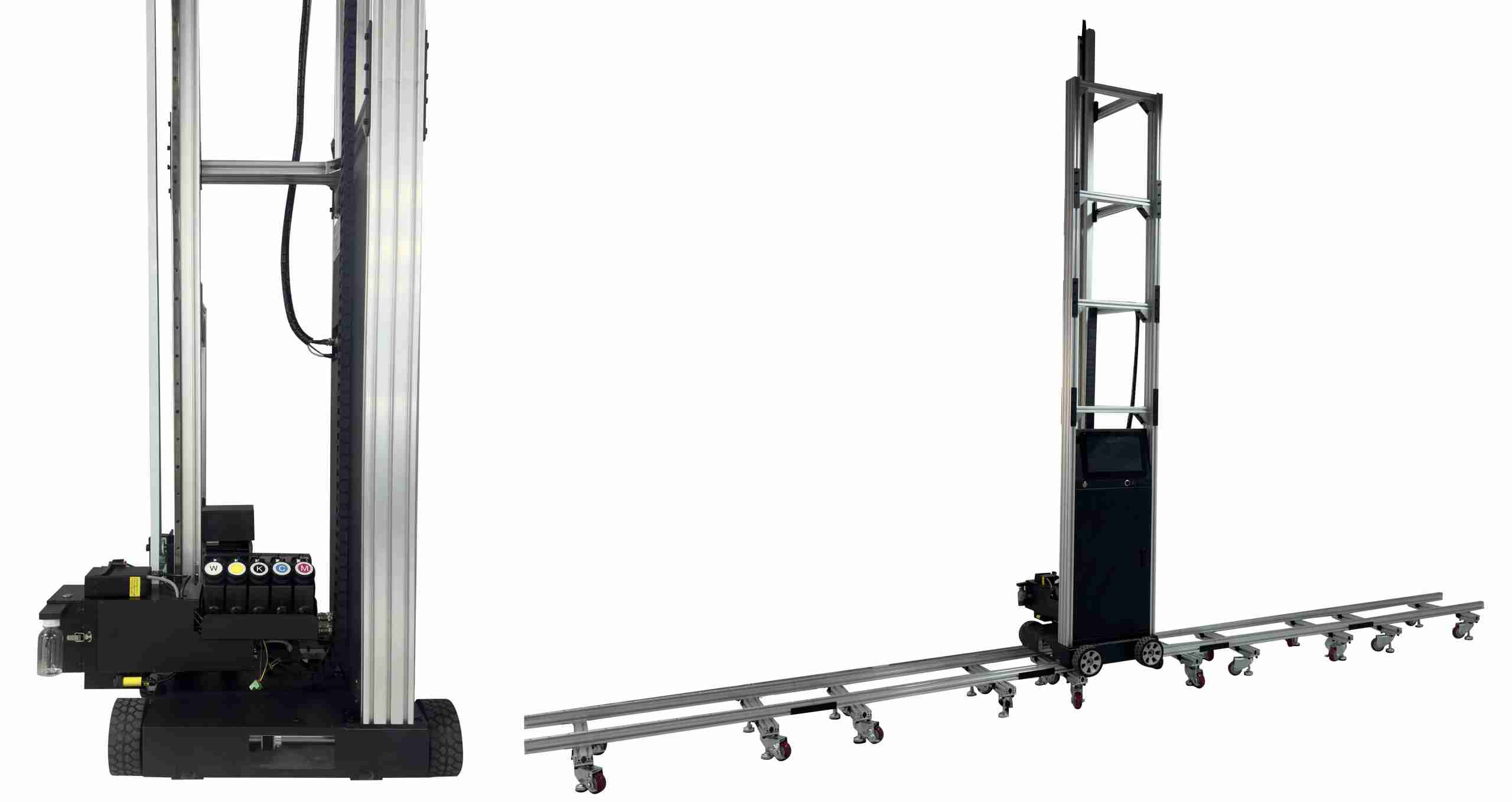

The driving system is the foundation of a wall printer’s stability and movement. It determines how the machine traverses the horizontal (X-axis) to create a continuous, seamless image. DXonJet wall printers are engineered with two primary driving configurations: Wheel-Based Traction and Precision Track Systems.

Wheel-Based Driving System (Mobility & Efficiency)

The wheel-based system is designed for operators who prioritize speed of setup and portability. In this configuration, high-torque motors drive precision bearings that turn the machine's wheels directly on the floor.

  • Key Advantages:

    • Rapid Deployment: No need to assemble or level long horizontal tracks. The printer can be placed on a flat floor and start printing almost immediately.

    • Versatility: Ideal for indoor projects where the floor is relatively level, such as offices, homes, or galleries.

    • Compact Footprint: Reduces the total amount of equipment required at the job site.

  • Best For: Small to medium-sized indoor murals and businesses that require frequent relocation between job sites.

Track-Based Driving System (Precision & Scale)

For high-end commercial projects and large-scale murals, the track-based system is the professional standard. In this setup, the motor drives a gear assembly that locks into a dedicated horizontal track.

  • Key Advantages:

    • Micro-Precision: The mechanical interlocking of gears and tracks eliminates the risk of "slippage," ensuring that every vertical pass of the printhead is aligned with sub-millimeter accuracy.

    • Surface Independence: Because the printer travels on its own leveled rails, the quality of the print is not affected by uneven or bumpy flooring.

    • Infinite Expandability: Tracks can be joined together to allow for murals of unlimited width without losing alignment.

  • Best For: Large-scale outdoor walls, uneven industrial floors, and high-resolution 3D murals where absolute stability is required.

Choosing the Right System for Your Business

While both systems utilize industrial-grade motors, the choice depends on your specific work environment:

  • Choose Wheels if you work primarily in finished indoor spaces with flat floors and need to finish jobs quickly.

  • Choose Tracks if you work on construction sites, outdoor surfaces, or large-scale commercial contracts where image perfect-alignment over 10+ meters is mandatory.

Engineering Excellence in DXonJet Systems

Regardless of the drive method, DXonJet utilizes closed-loop feedback systems to monitor the driving speed in real-time. This ensures that even if there is a slight change in resistance, the motor compensates instantly to prevent "banding" or horizontal stretching of the image.
